Item specifics
  • Model Name: SW836APV
  • Material Type: Material: Plastic
  • Type: Visible
  • Brand Name: CAR ROVER
  • Talk Range: 2.5 M
  • Monitor Type: Backview Mirror
  • Parking Assistant Type: Review camera
  • Nightvision: YES
  • Waterproof: IP67~68
  • Monitor Display Size: 4.3 Inch
  • Product name: Car Rear View Camera 4.3 inch Color LCD Car Mirror Monitor
Product Description
Car Parking Sensor  with 4.3" LCD Back View Mirror Visible Monitor + Rear View Camera + BiBi Sound Alert SW836APV



GREAT FEATURES:



Waterproof, can be Used both in car and home
* Automatically Night Vision within 3 meters

* High-definition and Wide viewing angle

* Easy to install, you can install the monitor via mount holder or universal bracket

* Can see both distance and parking guild line together from the monitor
* Parking sensor speaker alarm indicator

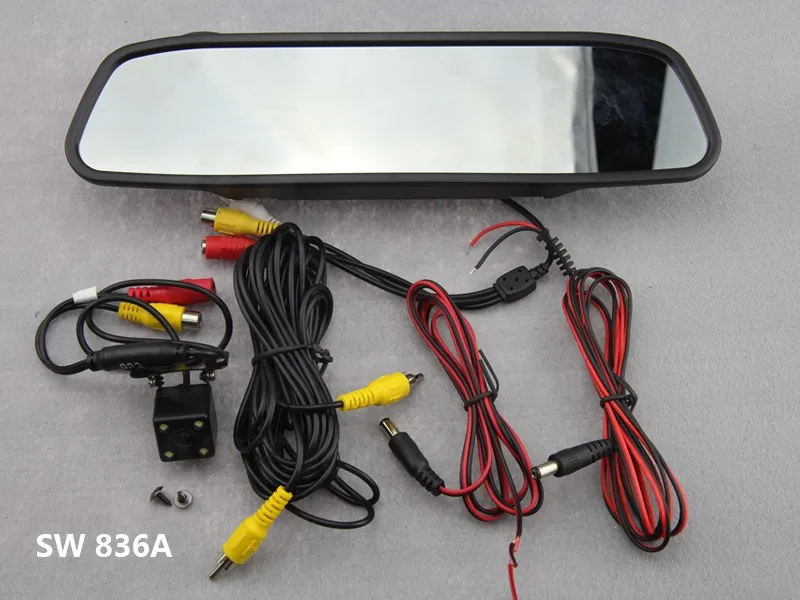

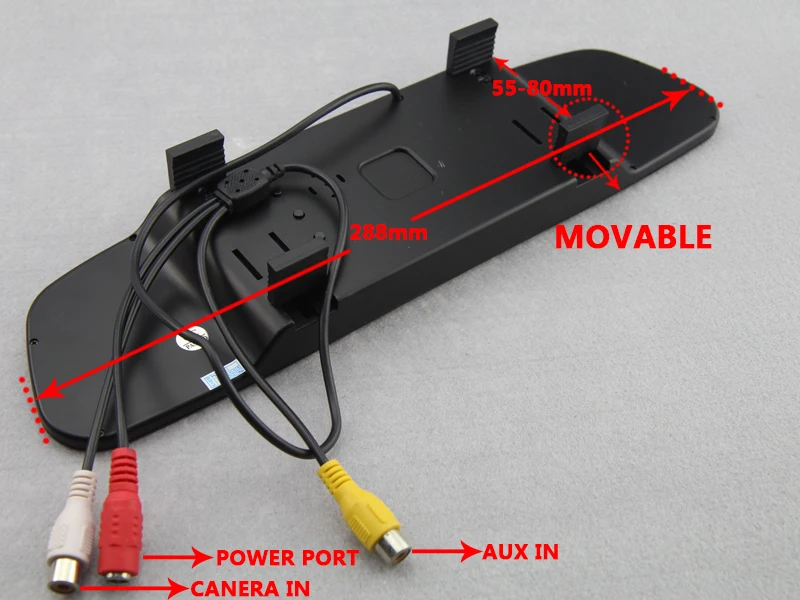

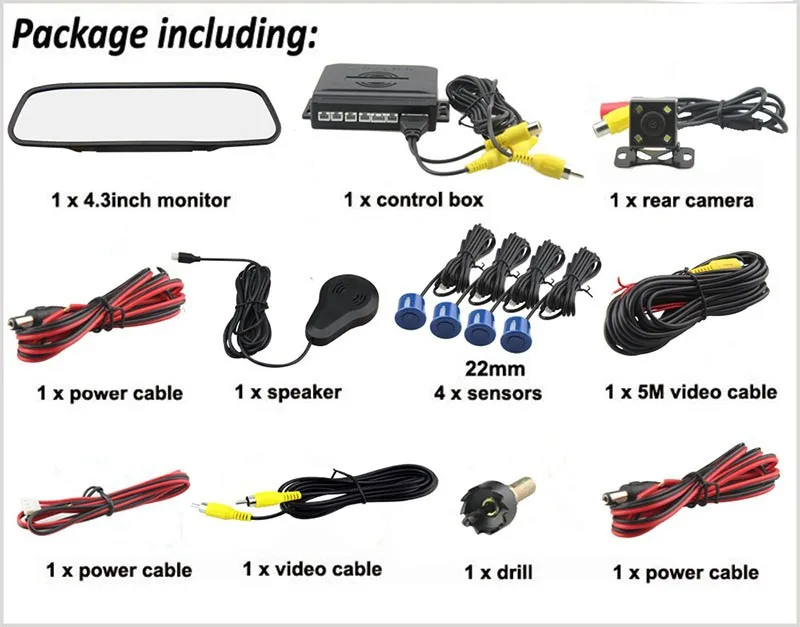

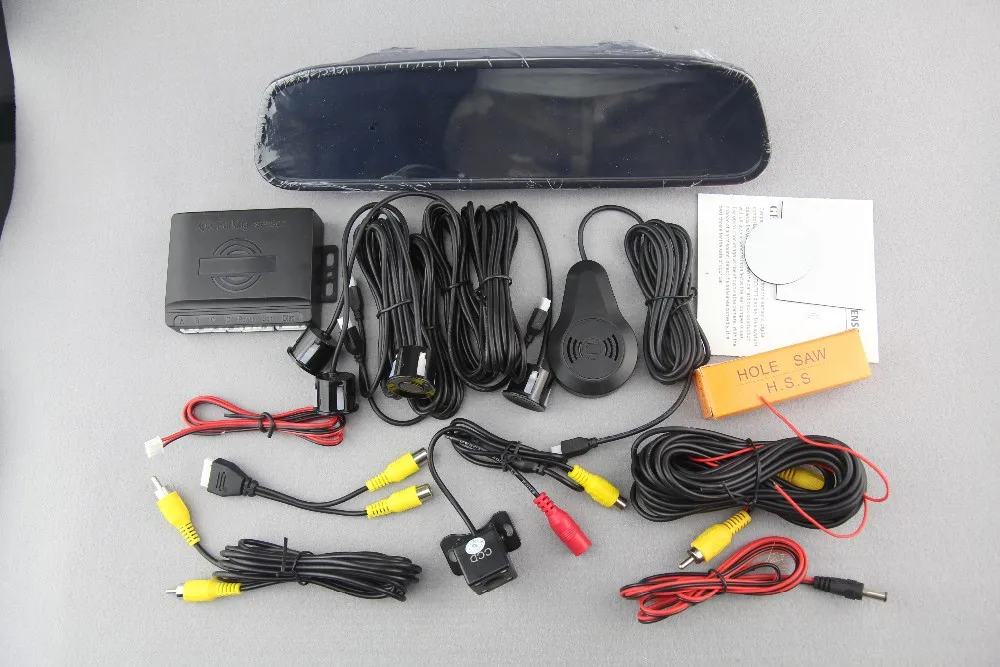

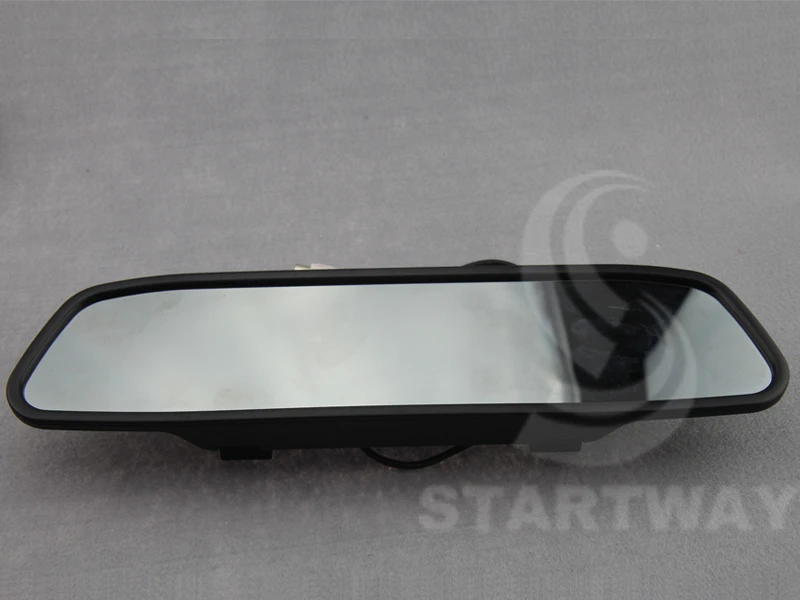

PRODUCT PHOTOS:




a a11 IMG_1992 836APV
SW 836A MONITOR PARAMETER:
Screen size 4.3 inch
Material TFT LCD
Resolution 480RGB*272
Color Black
Video Input 2 way (Video 1 & Video 2)
Power Supply DC 12V(Max 2.5W)
Operating Temperature (Deg.C) -30~+80(RH95% Max.)
Storage Temperature (Deg.C) -40~+85(RH95% Max.)
Working Mode Automatically turn on and switch to video source when video signal is detected.

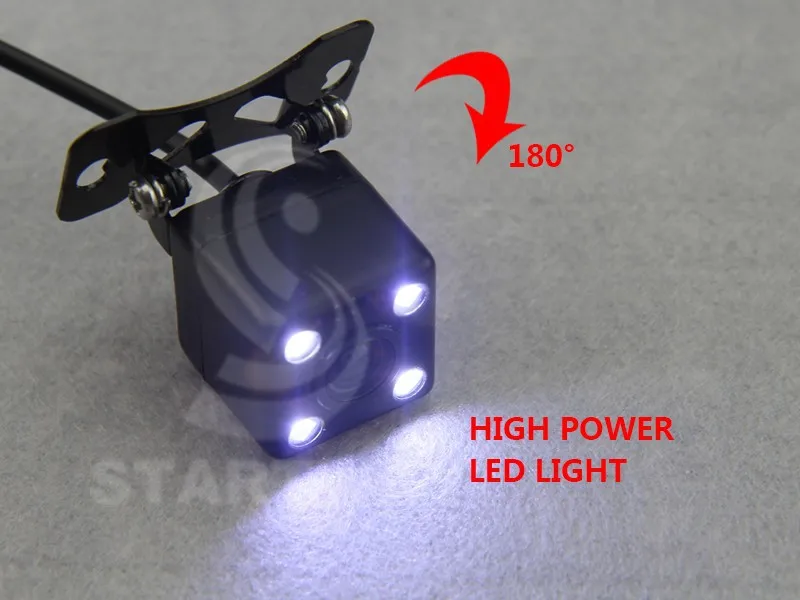

SW 836A CAMERA PARAMETER:
Image Sensor 1/4 " Color CCD PC7070
TV system PAL/NTSC
Horizontal Resolution 500 TV lines
Effective pixels 928*500 pixels
Sensing Area 3.584 mm *2.688 mm
Night Vision Automatically Night Vision
Video cable length 6 Meter
Shutter Speed 1/60-1/5000
Video Out 1.0 VP-P,75 OHM
Gamma 0.45
AGC/BLC Auto
Lens Viewing Angle 170 degrees
Waterproof Level IP67~68
Minimum illumination 0.1 Lux/F=1.2(0 Lux with IR on)
Power Supply DC 12V
Operating Temperature (Deg.C) -20~+75(RH95% Max.)
Storage Temperature (Deg.C) -40~+85(RH95% Max.)
SW 836APV PARING SENSOR PARAMETER:



Rate voltage: 12V
Operation voltage range 9-16v
Rated current 20-200mA
Detecting distance 0-2.5m
Working temperature -30~+70 degree
Display working temperature 0~+60 degree
Ultrasonic Frequency

40HKz

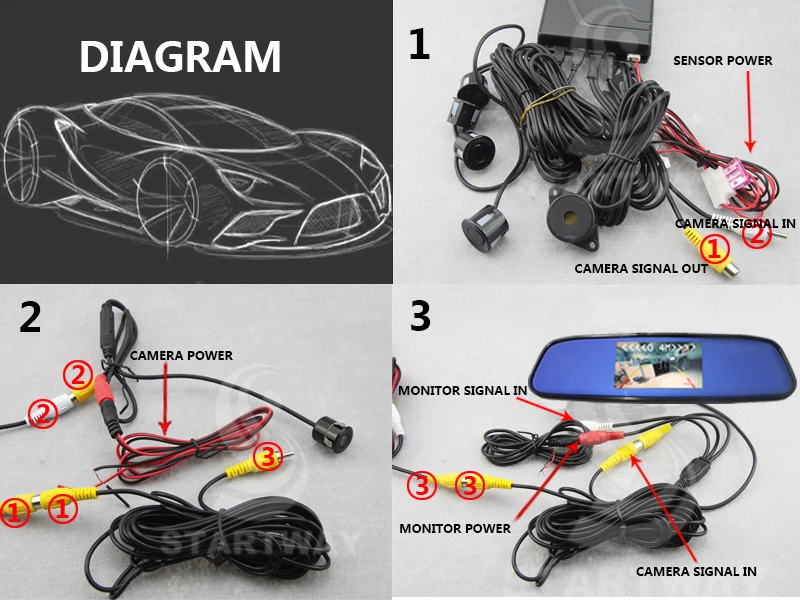

SW 836A INSTALLATION:





Packaging Details
  • Unit Type: Set
  • Package Weight: 1.3kg (2.87lb.)
  • Package Size: 32cm x 11cm x 12cm (12.60in x 4.33in x 4.72in)
