Item specifics
  • Brand Name: Autoleader
  • Type: Visible
  • Model Name: no
  • Material Type: ABS Plastic
Product Description


Specifications:
  • Model:513703
  • Name:Car wireless reversing radar kit
  • Materials: Polyvinyl chloride (PVC)
  • Type:Parking Assistance
  • Sensors Diameter:2.5cm
  • Cable Length:approx.2.5m

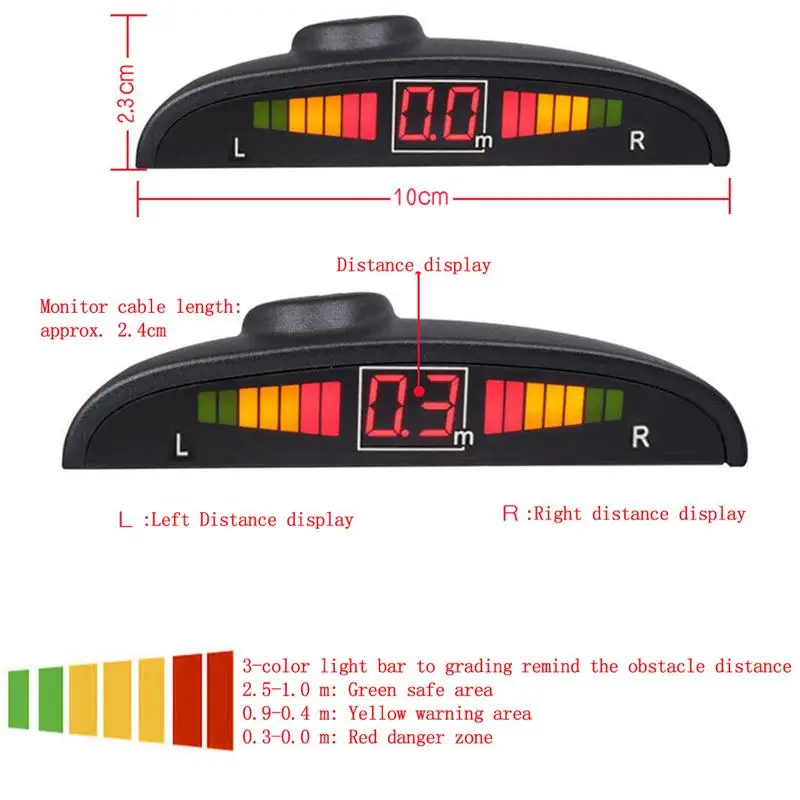

  • Monitor total length:10cm
  • Monitor cable length:approx. 2.4cm
  • Host:9 x 6 x 2.3cm
  • Numeral display:from 2.0m to 0m

Voltage: 9DCV-15DCV
  • Rated Voltage: 12DCV
  • Power Cost: Max0.5W
  • Respond Distance: 0.3m-2.0m
  • Alarm Distance: 0m-2.0m
  • Display Mode: LED display

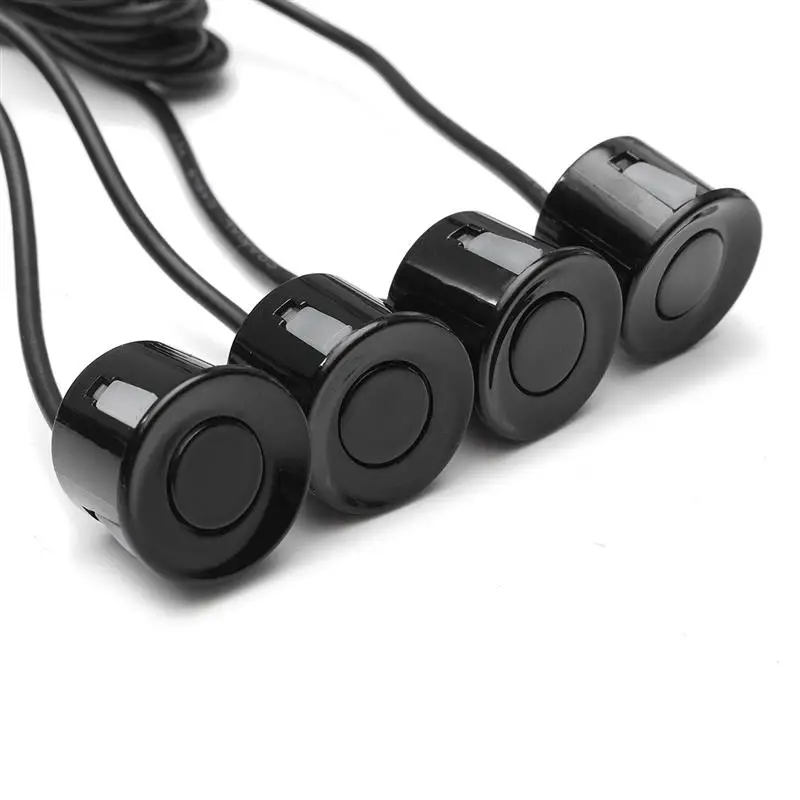

  • Sensor Diameter: 22mm

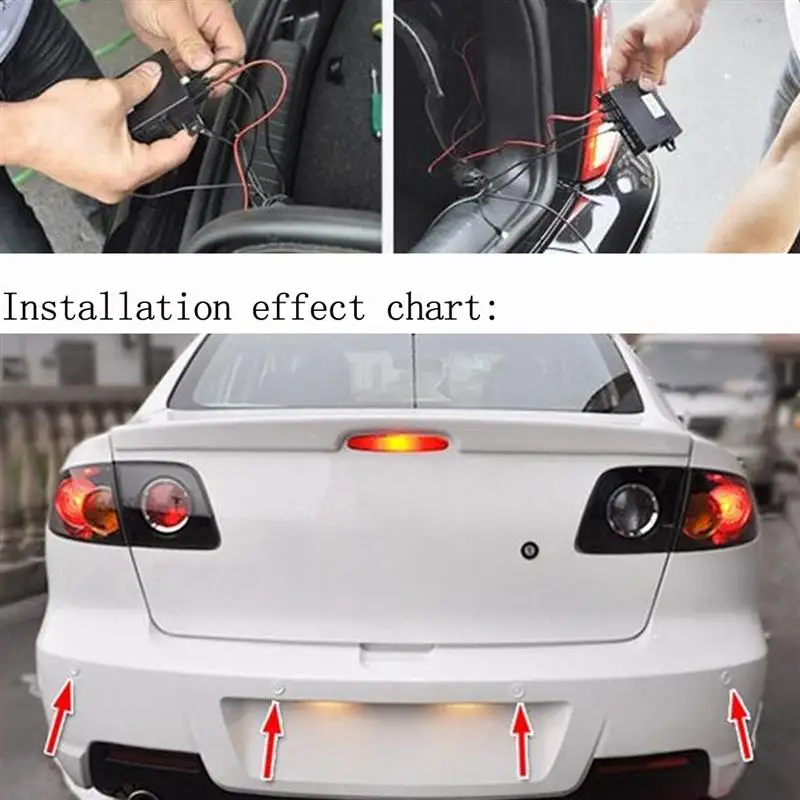

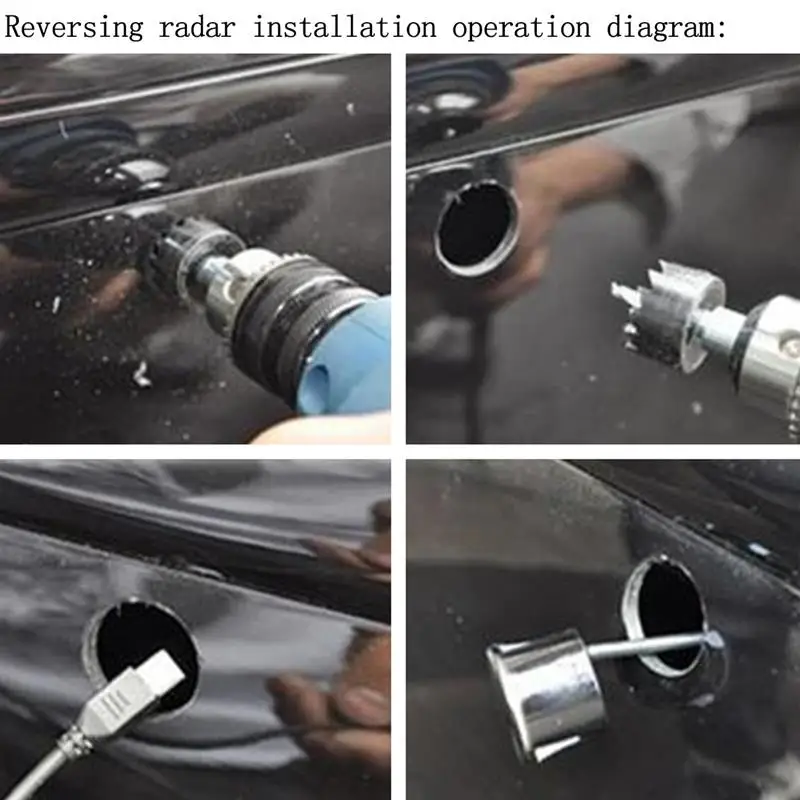

  • Install Mode: drill
  • Sensor Angle: X, Y, 60℃
  • Working Temperature: -30℃~+80℃
  • Alarm Type: Buzzer(Bi Bi…)
  • Alarm Volume: 65DB
  • Alarm Frequency:
  • 1.6-2.0m; 0.5HZ(slowness);
  • 1.1-1.5m; 1HZ(slowness);
  • 0.6-1.0m; 3HZ(patter);
  • 0-0.4m: B1......
  • FM Power: 10mw
  • FM Frenquency: 433MHZ

Application:
  • Reversing radar measuring distance: reversing radar probe at a certain time to send an ultrasonic signal, met the measured object reflected back, was reversing radar received.

Package include:

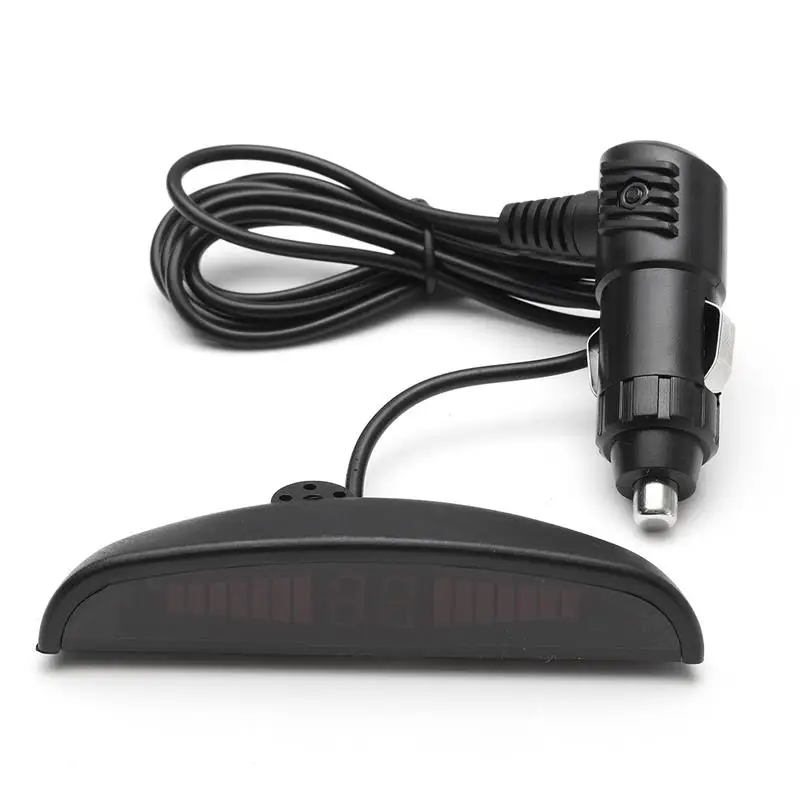

  • 1x Small crescent LED display
  • 1x Host
  • 1x Instruction
  • 1x Drill
  • 1x Tape
  • 1x Cable
  • 4x Sensors

Due to manual measurement, please allow a slight error, thank you!













Packaging Details
  • Unit Type: piece
  • Package Weight: 0.468kg (1.03lb.)
  • Package Size: 28cm x 17cm x 5cm (11.02in x 6.69in x 1.97in)
