Item specifics
  • Model Name: CA962
  • OSD Language: English
  • Material Type: plastic
  • Type: Visible
  • Brand Name: FEELDO
  • Talk Range: Detecting distance:0.3-2.5m
Product Description
[Part A:]
Specifications:

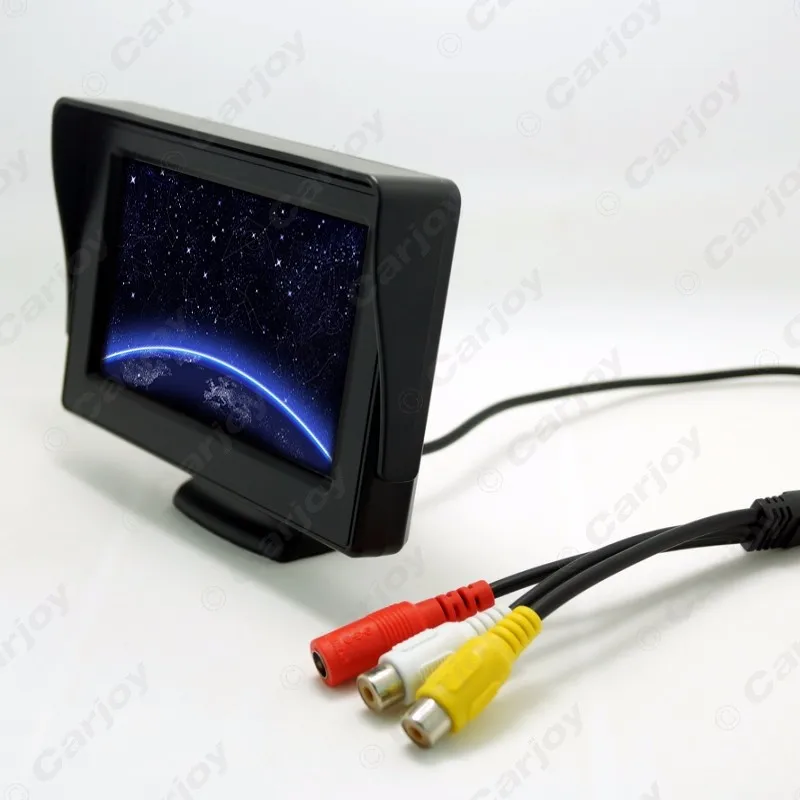

4.3 inches Stand-alone digital TFT LCD windshield monitor
LCD angle adjustable(Left,Right,Up,Down),Swivel
Display Format:16:9
Resolution:480 x 272 RGB
Color: RGB color
Video Format:PAL/NTSC
Power Supply:9-24V DC
Power consumption:<2W
Contrast:400:1
2-Way AV RCA video input,No Audio input

Packing List:

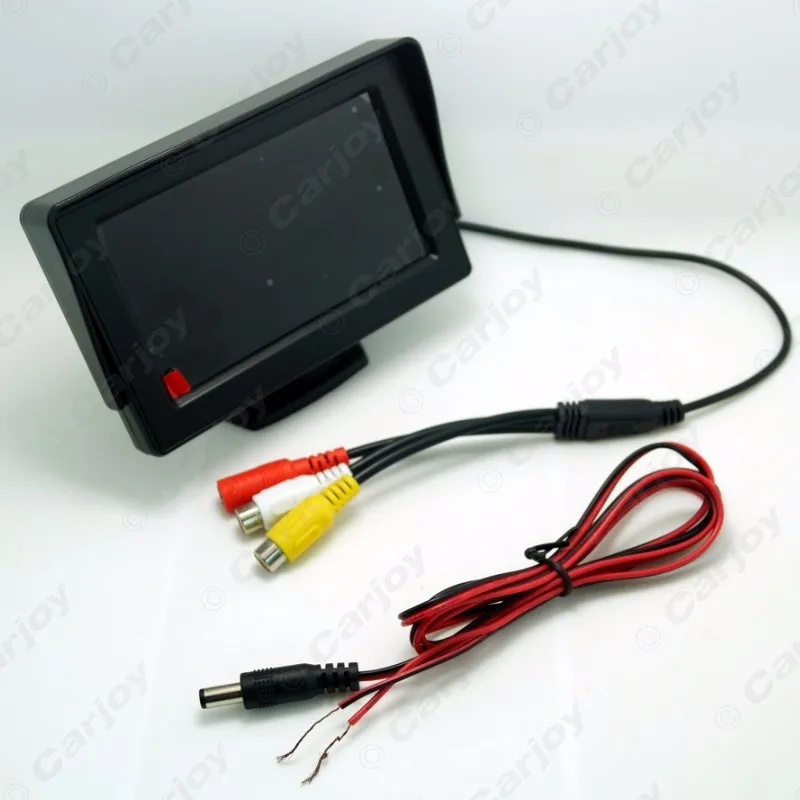

1x 4.3inch Digital LCD Monitor
1x Power Cord

[Part B:]
4 Parking Sensor features
Outer display,One video output,one video input
With three-stage beeping mode
Insert-in sensor for optional
Continous Bibi alarm sound under 0.4m

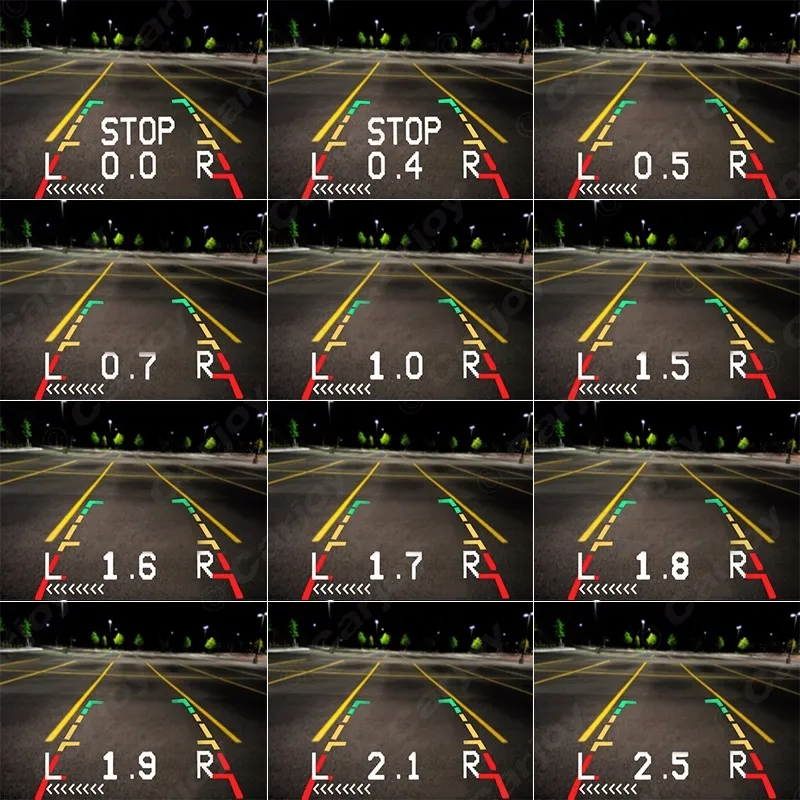

3-Color LED to show the distance from the obstacles
Video input for nomal image camera,and the video output has the monitor function
Technical data:
Rated voltage: 12V DC
Operating range: 9 to 16V
Rated current: 20 to 200mA
Detecting distance: 0.30 to 1.5m
Ultrasonic frequency: 40KHz
Working temperature: -30~+70C
Display working temperature:0~+60C

Packing List:
1x Car 4 Rearview Parking Sensor System Backup Radar Main Box
4x Radar Sensor
1x Buzzer Speaker
1x Composite video cable
1x 5-meter RCA cable
1x Holesaw

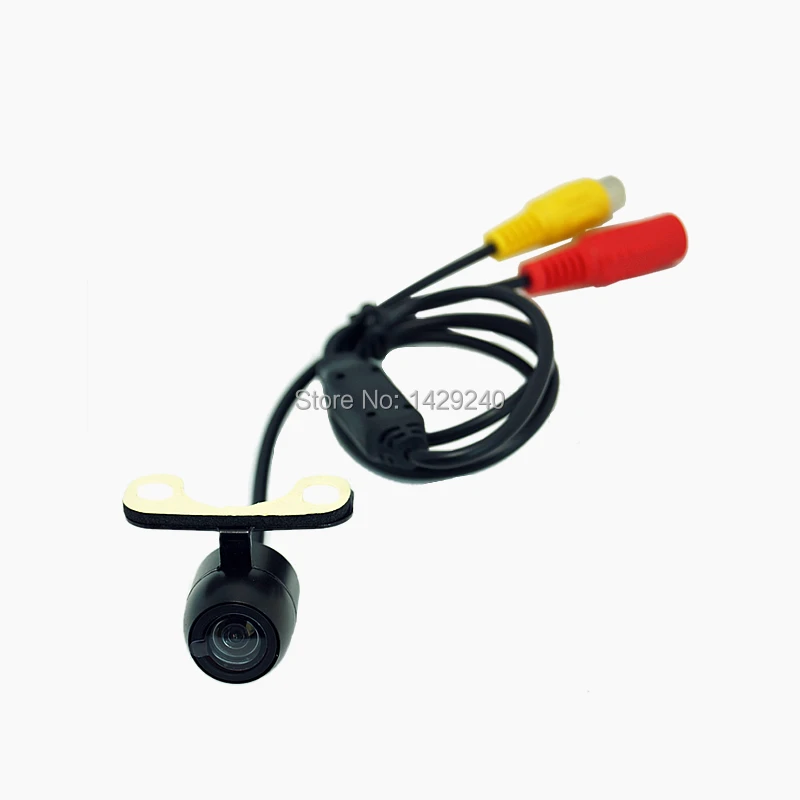

[Part C:]
Waterproof IP Rating:IP68
Image feature:CCD (Made in Japan)
TV System:NTSC(if need PAL,pls send the message to us)
Effective pixels:NTSC:728*582(PAL:728*512)
View angel:170C
Horizontal Resolution(TV lines):480TV lines
minimum illumination:0.6Lux/F1.2
current consumption:Max 120mA
Power Supply:DC12V
Working temperature:-20C~70C,Max Rh95%
Storage temperature:-40C~80C,Max Rh95%

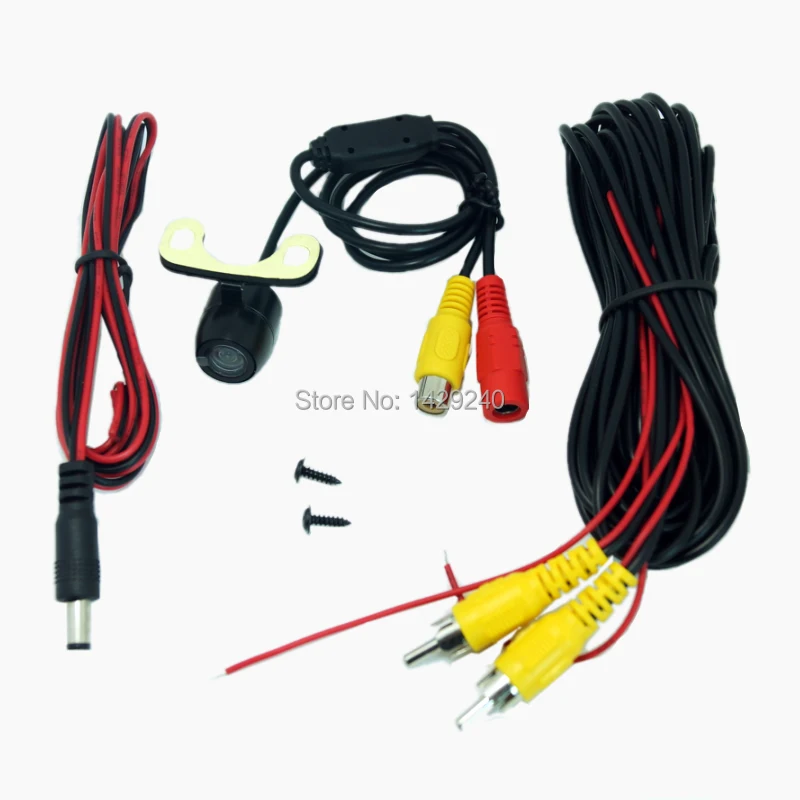

Parking List:
1 x Rearview parking sensor whole set
1 x 1 x 16.5mm CCD Cameras
1 x Power Cord
1 x RCA Cable
CJ12
CJ2
CJ3
CJ6
CJ5
CJ6
8
9
CJ33
Colors

Packaging Details
  • Unit Type: Set
  • Package Weight: 1.8kg (3.97lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
