Item specifics
  • OSD Language: English
  • Model Name: CA1349
  • Material Type: plastic
  • Type: Visible
  • Brand Name: FEELDO
  • Talk Range: Detecting distance:0.3-2.5m
Product Description
Description:
If you have the car mornitor or car dvd player with RCA  connector AV-IN function , you can only buy our this set items, and constitute with yours  as whole set visual reversing parking radar system.

Features:
(1)Supports all parking sensor power-on self-testing function

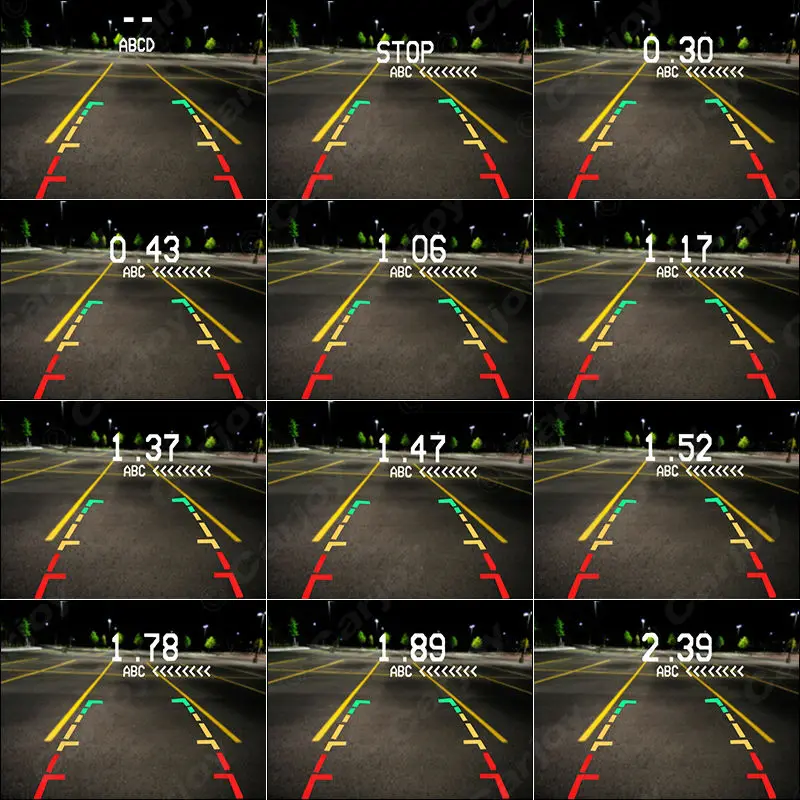

(2)Display real image and distance of obstacle on screen
(3)Left and right direction indicate,distance buzzer beep alarm

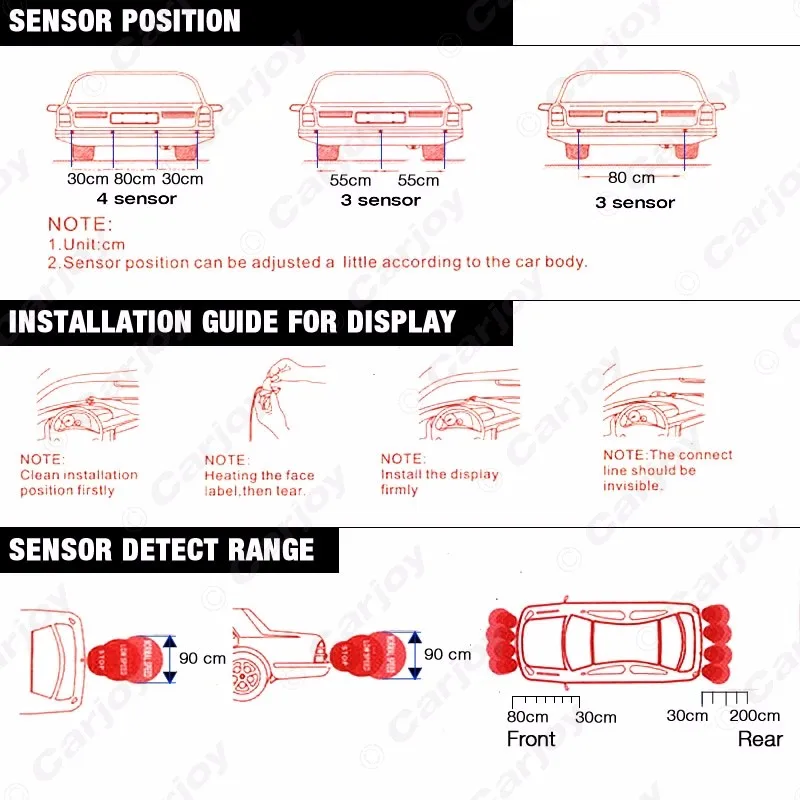

(4)The rear detection distance is from 0.4m~2.5m
(5)The front detection distance is from 0.3m~0.8m
(6)2-Way camera video input,1-Way composite video output

Specifications:
Rated voltage:DC12V
Operating range:10.5V-16V
Rated current:40~800mA
Detecting distance:0.40m~2.5m(Rear)/0.3m~0.8m(Front)
Ultrasonic frequency:40KHz
Working temperature:-40C~+80C(Celsius)
Sensor color:white,black,gold,silver,blue,green,orange,yellow,red

Packing List:
1x Car 6-Sensor Rearview Parking System Backup Radar Main Box
6x Radar Sensor(Front:2pcs/Rear:4pcs)
1x Buzzer Speaker
1x 2-Way video input cable
1x 1-Way video ouptpu cable
1x 1.5meter RCA cable
1x Power cord
1x Holesaw(22mm dia)

Description:
Support Reverse/Mirror Image
Waterproof IP Rating:IP68
Image feature:CCD (Made in Japan)
TV System:NTSC(if need PAL,pls send the message to us)
Effective pixels:NTSC:728*582(PAL:728*512)
View angel:170
Horizontal Resolution(TV lines):480TV lines
minimum illumination:0.6Lux/F1.2
current consumption:Max 120mA
Power Supply:DC12V
Working temperature:-20C~70C,Max Rh95%
Storage temperature:-40C~80C,Max Rh95%

Item Include:
2 x Car 16.5mm Car CCD RCA Camera
2 x Power Cord
2 X RCA Cable

*Noticed*
This 6-sensor visual parking radar system need 2PCS cameras(front&rear) and monitor.
The camera and monitor are optional,you need buy them separately.

CJ2
CJ3
CJ1
8
9
CJ12
CJ13
CJ14
CJ15
CJW
Colors
Packaging Details
  • Unit Type: Set
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
